Fan Coil C-Type

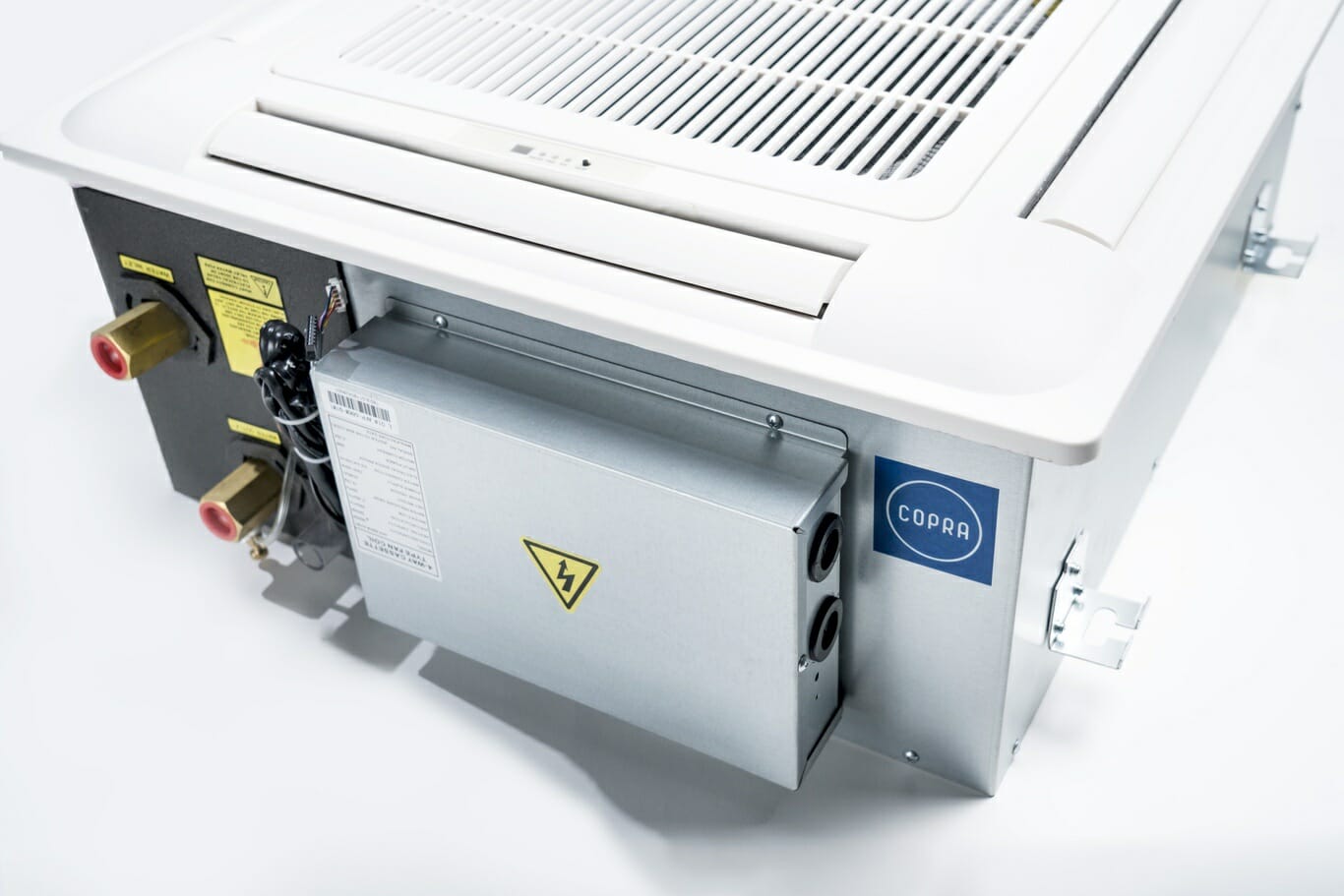

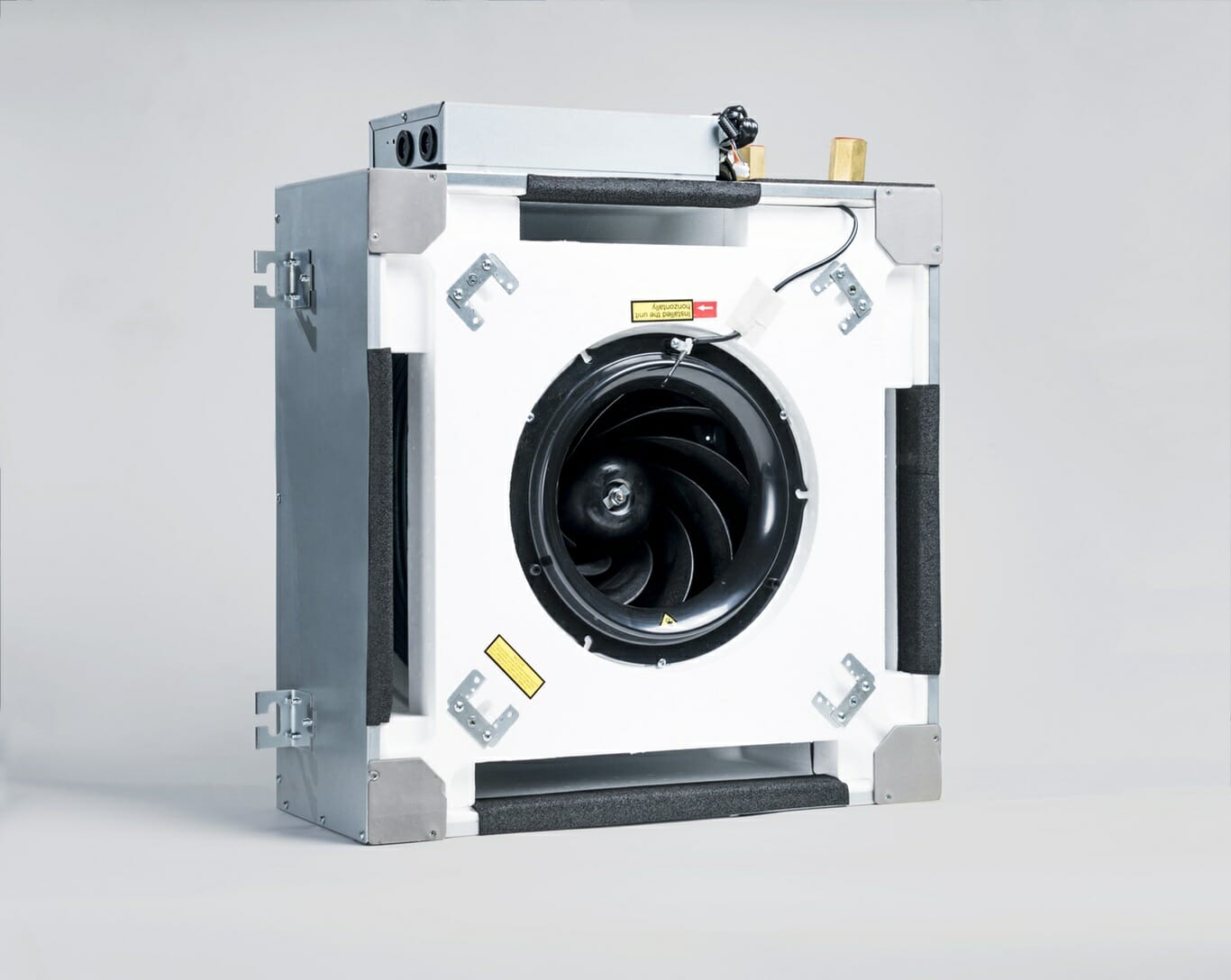

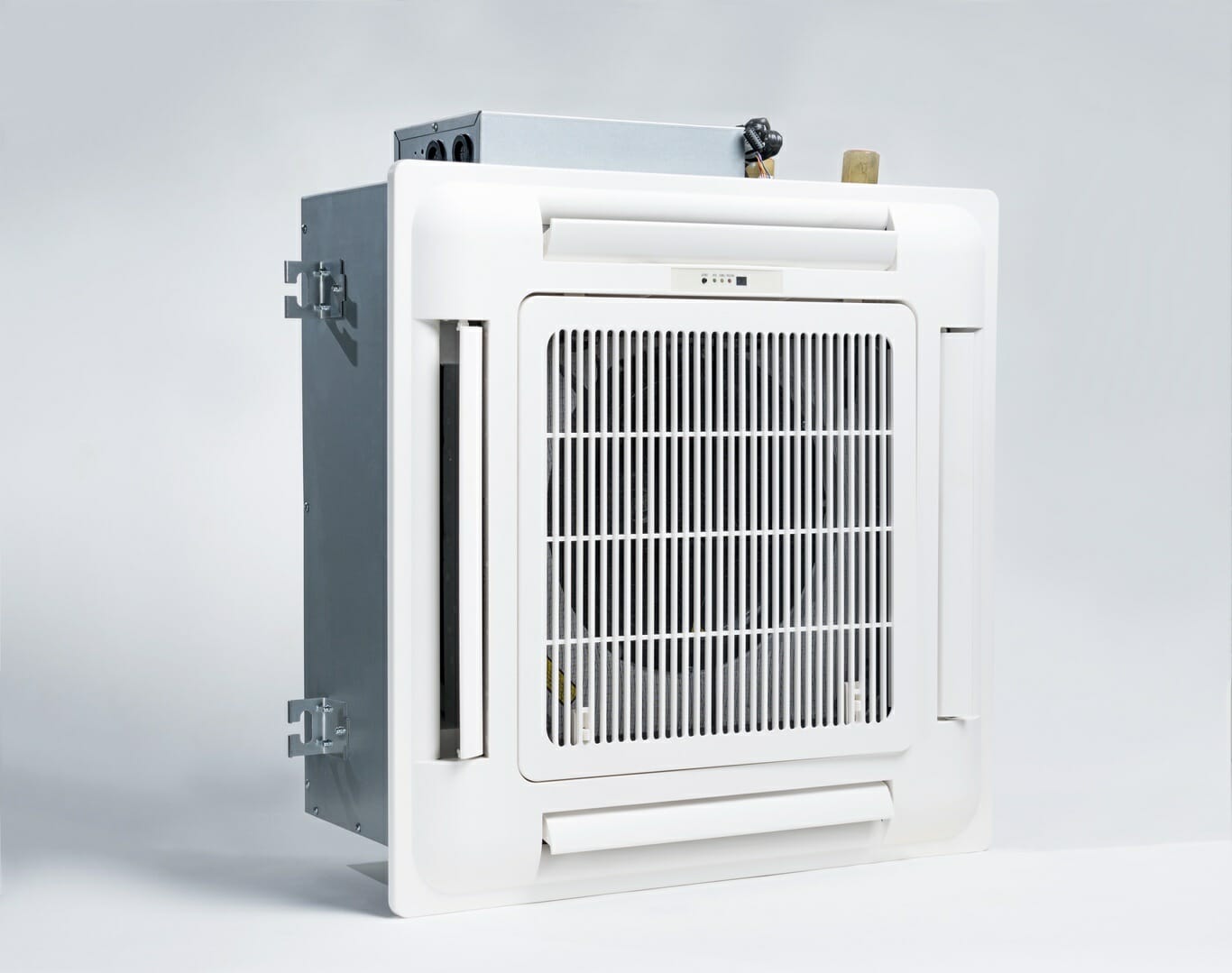

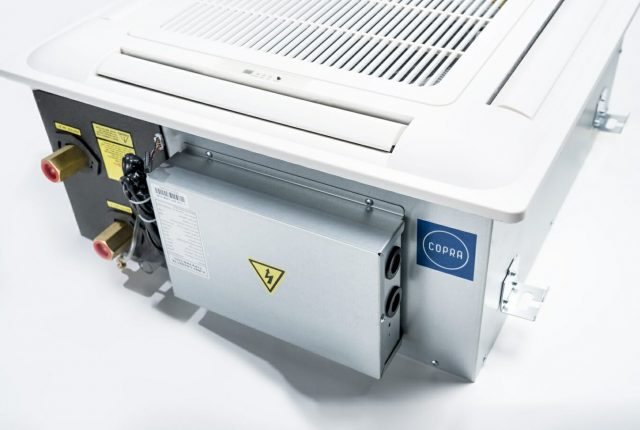

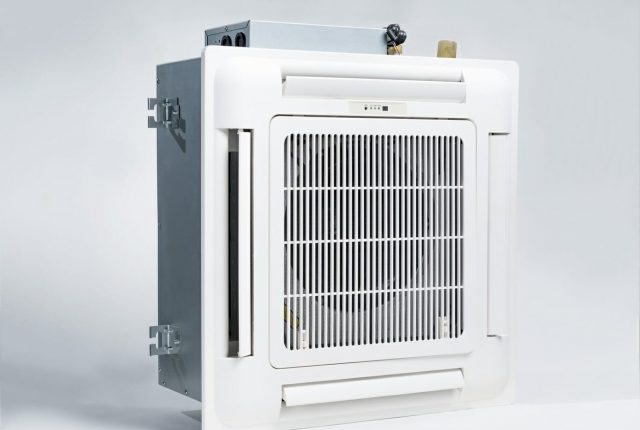

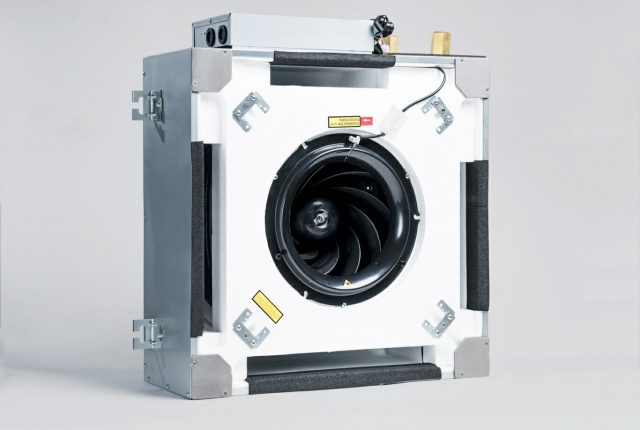

Copra C-Type Fan Coils for ceiling

  • Fan coil unit with diffusor for ceiling mounting
  • Heating and cooling applications
  • Remote controlled operation

Copra Fan Coils are made to meet the strict requirements of the marine industry. They are highly reliable and made through close cooperation with our customers. The compact size and easy installation make them easy to fit onboard your ship.

The C-Fan Coil is available in 3 different sizes, ranging from 4.9kW to 12kW in cooling capacities.

Model C4.9 C7.5 C12
If electrical heating element (H) 1700W 1700W 2500W
Model of panel MB-SD11K2 MB-SD11K3 MB-SD11K3
Power supply 230V,60Hz,1Ph 230V,60Hz,1Ph 230V,60Hz,1Ph
Air Volume H m3/h 880 1380 2200
M 700 1100 1760
L 530 830 1320
Static Pressure Pa 0 0 0
Cooling Capacity H W 4900 7500 12000
M W 4150 6400 10200
L W 3400 5200 8300
Heating Capacity H W 7600 11600 18600
M W 6450 9850 15800
L W 5100 7750 12450
Noise H 0Pa dB(A) 42 46 51
Power Input H 0Pa W 70 130 210
Waterflow Volume m3/h 0,83 1,28 2,04
Water Pressure Dropping kPa 18 23 42
Dimension of water(in & out)connection pipe in ZG3/4″ ZG3/4″ ZG3/4″
out ZG3/4″ ZG3/4″ ZG3/4″
Coil type High efficient copper pipe to wear hydrophilic aluminum coil
Dimension of water drain pipe mm ø26 ø26 ø26
Net dimension Unit L×W×H     mm 750*750*242 840*840*242 840*840*292
Panel 850*850*40 950*950*40 950*950*40
Net weight Unit kg 22 25 27
Panel kg 4,2 5 5
