Fan Coil F-Type

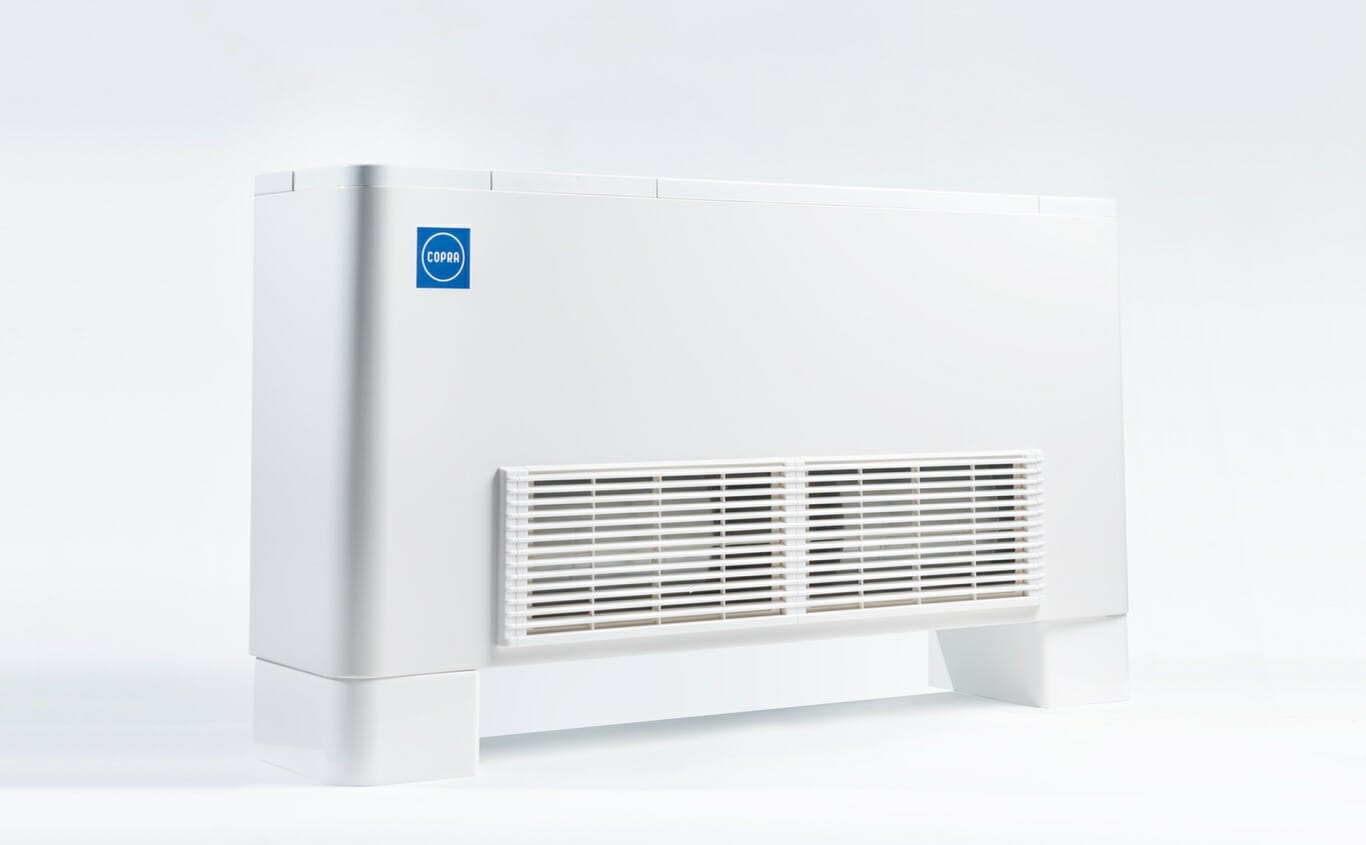

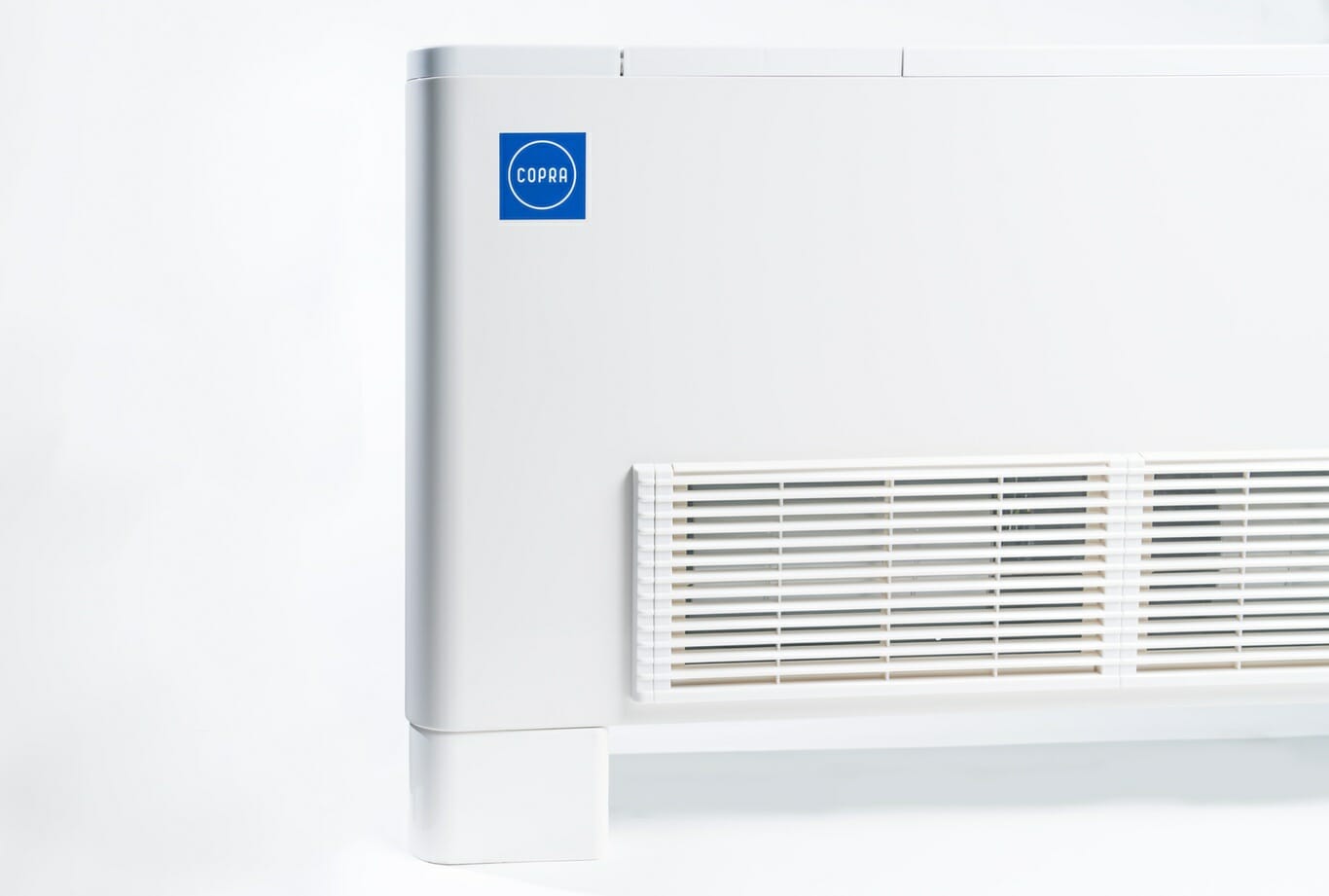

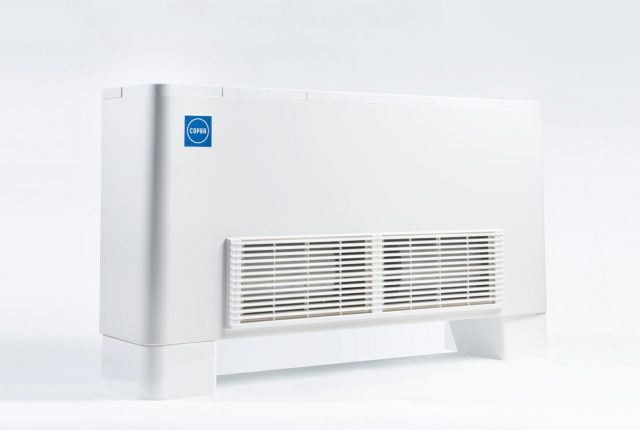

Copra F-Type Fan Coils for floor mounting

  • Fan coil unit with casing
  • Heating and cooling applications
  • Remote controlled operation

Copra Fan Coils are made to meet the strict requirements of the marine industry. They are highly reliable and made through close cooperation with our customers. The compact size and easy installation make them easy to fit onboard your ship.

The F-Fan Coil is available in 3 different sizes, ranging from 5.4kW to 12.6kW in cooling capacities.

COPRA Fan Coil F-Type
F5.4 F7.2 F12.6
Power Supply 220V,60Hz,1Ph
Air Volume H m3/h 1020 1360 2380
M 770 1020 1790
L 510 680 1190
Cooling Capacity H W 5400 7200 12600
M W 4483 5978 10461
L W 3487 4649 8136
Heating Capacity H W 8100 10800 18900
M W 6393 8524 14917
L W 5024 6697 11721
Noise H 0Pa dB(A) 45 46 51
Power Input H 0Pa W 96 134 228
Water Flow Volume m3/h 0,93 1,23 2,16
Water Pressure Dropping kPa 28 30 36
Dimension of water (in & out) connection pipe In ZG3/4″ ZG3/4″ ZG3/4″
Out ZG3/4″ ZG3/4″ ZG3/4″
Coil Type High efficient copper pipe to wear hydrophilic aluminum coil
Maximum Working Pressure Mpa 1,6 1,6 1,6
Condensation Pipe Size (diameter) mm Ø21mm
